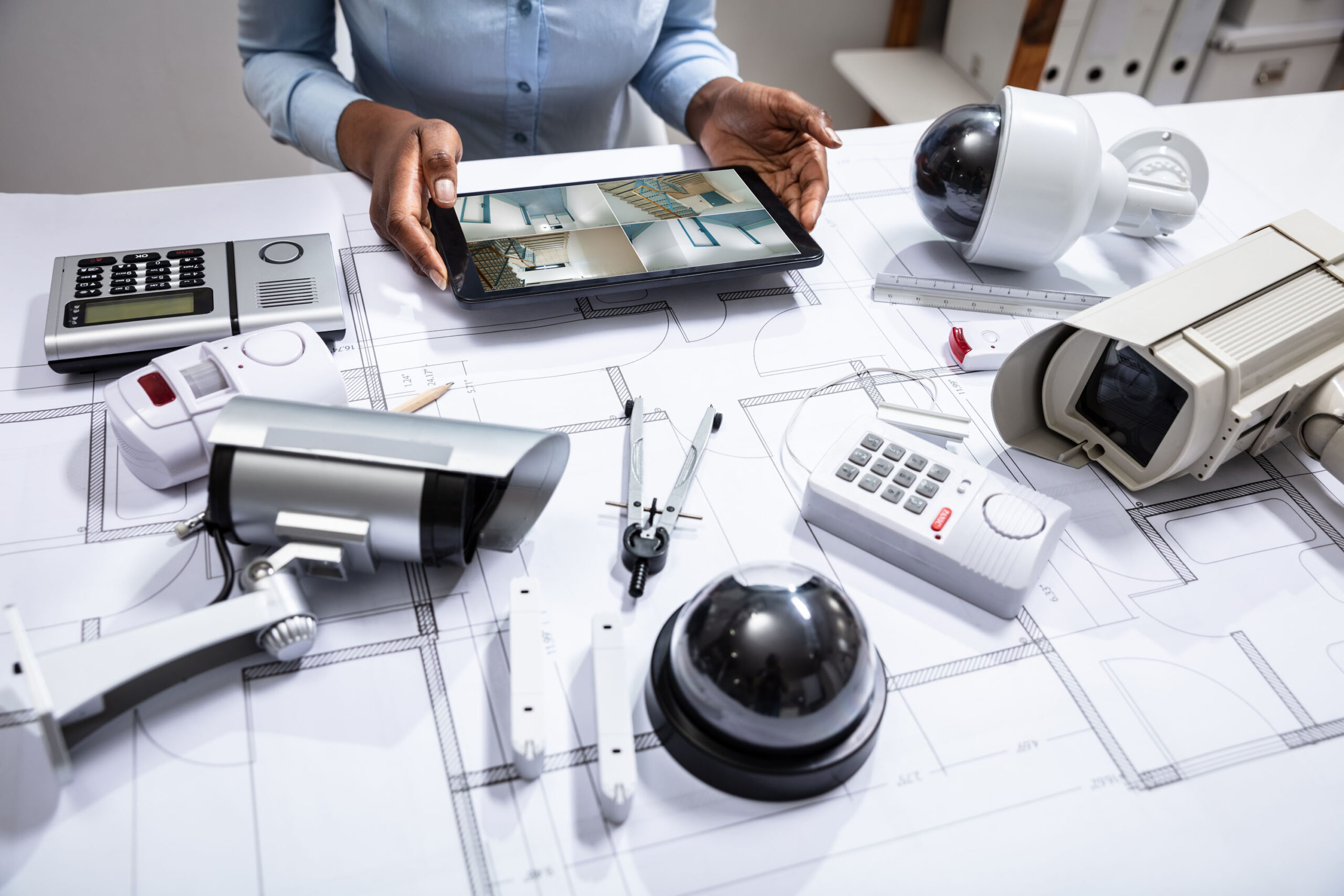

A CCTV (Closed-Circuit Television) system consists of several key components that work together to capture, record, transmit, and display video footage for surveillance and security purposes. Here are the essential components of a CCTV system:

Cameras:

Cameras are the primary components of a CCTV system. They capture video footage and come in various types, including dome cameras, bullet cameras, PTZ (pan-tilt-zoom) cameras, and IP cameras. The choice of camera type depends on specific surveillance needs.

Digital Video Recorder (DVR) or Network Video Recorder (NVR):

A DVR or NVR is used to record and store video footage from cameras. DVRs are typically used with analog cameras, while NVRs are used with IP cameras. They have built-in storage capabilities and support various channels for camera inputs.

Monitors:

Monitors are used to display live video feeds or recorded footage. They can be dedicated CCTV monitors or computer monitors connected to the DVR or NVR for viewing.

Cables and Wiring:

Various cables are used to connect cameras to the DVR or NVR and to provide power. Common cable types include coaxial cables for analog cameras and Ethernet (Cat5e or Cat6) cables for IP cameras.

Power Supplies:

Power supplies provide electrical power to cameras and other system components. Power sources can be centralized or individual for each camera, depending on the system design.

Storage Devices:

Storage devices, typically hard drives, are used to store video footage recorded by the DVR or NVR. The size and capacity of the storage device depend on the amount of video data to be retained.

Camera Mounts and Housings:

Camera mounts and housings are used to secure and protect cameras from environmental factors, such as weather, dust, and vandalism. They also allow for precise camera positioning.

Camera Lenses:

Lenses determine the field of view and focal length of the camera. Different lenses can be used to capture wide-angle views or zoom in for detailed shots.

Infra-Red (IR) Illuminators:

IR illuminators emit infrared light, which is not visible to the human eye but is detected by CCTV cameras equipped with IR-sensitive sensors. They enhance night vision capabilities, allowing cameras to capture images in low-light or no-light conditions.

Switches and Network Equipment:

In IP-based CCTV systems, network switches, routers, and other network equipment are used to facilitate data transmission between cameras, the NVR, and remote viewing devices.

Control Equipment:

Control equipment includes devices like PTZ controllers for pan, tilt, and zoom cameras. It allows operators to adjust camera positions and settings remotely.

Video Management Software (VMS):

VMS is software that manages the operation of the CCTV system. It enables users to view live and recorded video, configure camera settings, and set up motion detection and alerts.

Remote Viewing Devices:

Remote viewing devices, such as computers, smartphones, and tablets, allow authorized users to access live and recorded video feeds remotely over a network or the internet.

Power Over Ethernet (PoE) Devices:

In IP-based systems, PoE switches and injectors provide both data and power to IP cameras through a single Ethernet cable, simplifying installation.

Backup Power (UPS):

Uninterruptible Power Supplies (UPS) ensure that the CCTV system continues to operate during power outages, allowing for continuous surveillance.

Security Cabinets and Enclosures:

Security cabinets and enclosures protect DVRs, NVRs, and other sensitive equipment from unauthorized access and physical damage.

These components work together to create a comprehensive CCTV system that meets specific surveillance and security requirements, whether for residential, commercial, or industrial applications. The selection of components depends on factors such as the scale of the system, budget, and surveillance objectives.
