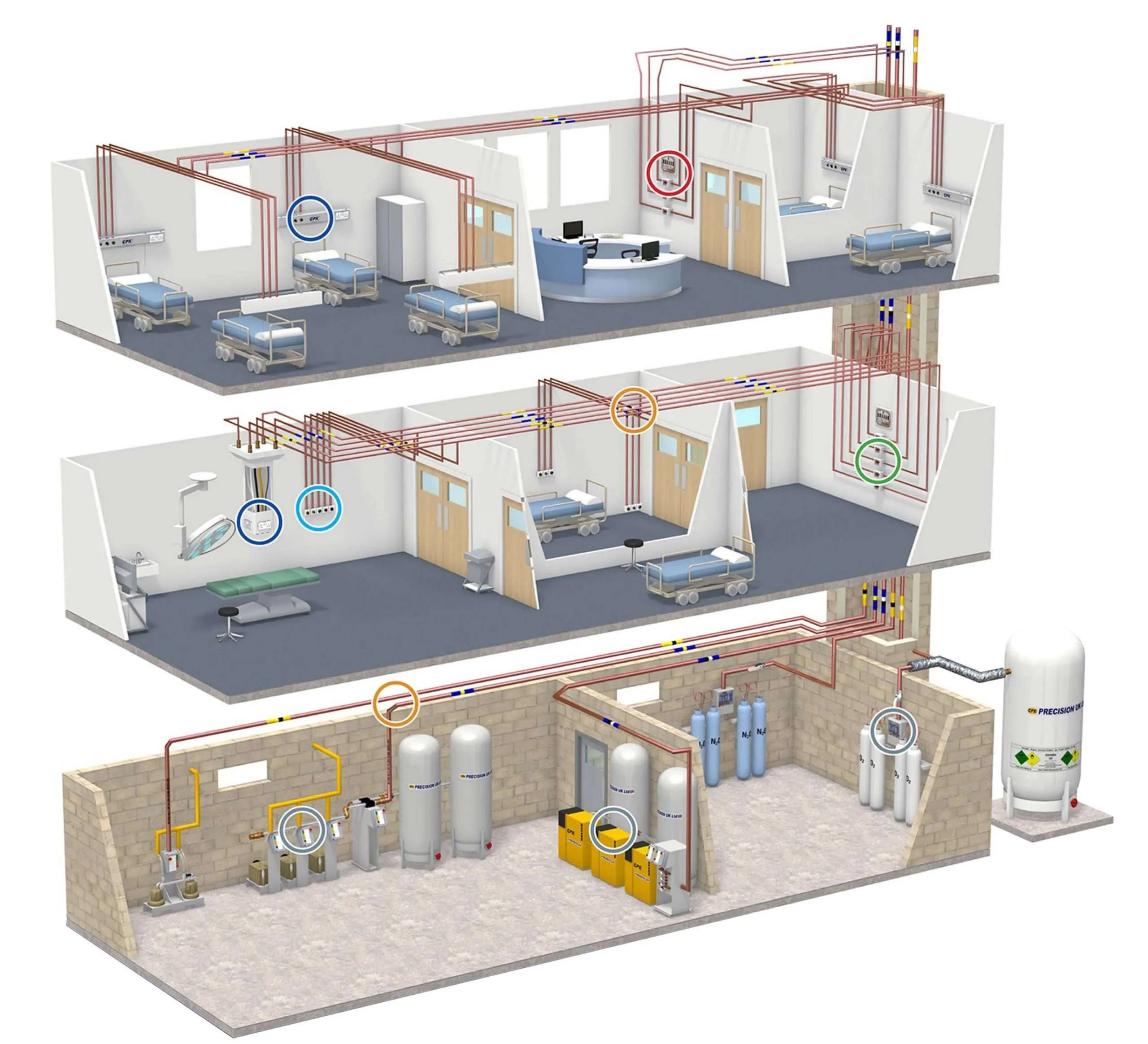

The abbreviation "MGPS" typically refers to a Medical Gas Pipeline System. MGPS is a critical infrastructure used in healthcare facilities to deliver various medical gases, such as oxygen, nitrogen, and compressed air, to patient care areas like operating rooms, intensive care units, and patient rooms. These systems ensure a reliable and safe supply of medical gases for patient care and medical procedures. Here are the main components of a typical MGPS:

Gas Source:

The gas source can vary depending on the type of medical gas required. Common sources include bulk liquid oxygen storage tanks, oxygen cylinders, nitrogen cylinders, and compressed air systems.

Gas Control Panel:

A gas control panel serves as the central control point for the MGPS. It includes pressure regulators, flow meters, pressure gauges, and valves to control the flow and pressure of medical gases.

Gas Manifold:

The gas manifold is a distribution system that receives gases from the source and directs them to different areas of the healthcare facility through a network of pipelines.

Pipeline Network:

The pipeline network consists of a network of pipes and valves that distribute medical gases throughout the facility. These pipelines are color-coded to differentiate between different gases to prevent cross-contamination.

Outlet Terminals:

Outlet terminals are the points where medical staff connect medical devices and equipment, such as ventilators, anesthesia machines, and patient bedside outlets, to the MGPS. These outlets are equipped with quick-connect mechanisms and control valves.

Zone Valves:

Zone valves are used to isolate specific sections or zones of the MGPS. They allow for maintenance or repairs to be carried out in one section without affecting the entire system.

Alarm System:

An alarm system monitors the pressure and flow of medical gases within the MGPS. If there is a pressure drop or any other issue, alarms are triggered to alert healthcare staff.

Backup System:

To ensure uninterrupted gas supply, many MGPS include backup systems, such as redundant sources or backup cylinders, in case the primary source fails.

Medical Gas Outlets:

These are specially designed outlets that allow medical equipment to be connected to the MGPS. Each outlet is labeled according to the type of gas it supplies.

Pipeline Labels:

The pipes in the MGPS are labeled with color-coded tape or markers to indicate the type of gas they carry, making it easy for medical staff to identify the correct gas source.

Pressure Monitoring Devices:

Pressure monitoring devices are installed at various points in the MGPS to continuously measure and display gas pressure, helping healthcare staff ensure that the system is functioning correctly.

Filters and Traps:

Filters and traps may be installed in the system to remove impurities or contaminants from the medical gases.

Emergency Shutoff Valves:

Emergency shutoff valves are strategically placed in the MGPS to quickly isolate the gas supply in case of emergencies or maintenance.

Maintenance and Testing Equipment:

Various tools and equipment are used for routine maintenance, inspection, and testing of the MGPS, including pressure testing equipment and gas analyzers.

It's important to note that the design, installation, and maintenance of an MGPS should comply with relevant national and international standards and guidelines to ensure patient safety and the reliable supply of medical gases. Additionally, regular inspections and testing are crucial to verify the system's integrity and functionality. MGPSs are an essential part of healthcare infrastructure and play a critical role in patient care and safety.
